Global TTC 1 & 2 Wire Braid Steel Crimp Fittings, Female BSP (British) Swivel, 90 deg Elbow

Global TTC 1 & 2 Wire Braid Steel Crimp Fittings, Female BSP (British) Swivel, 90 deg Elbow

Products

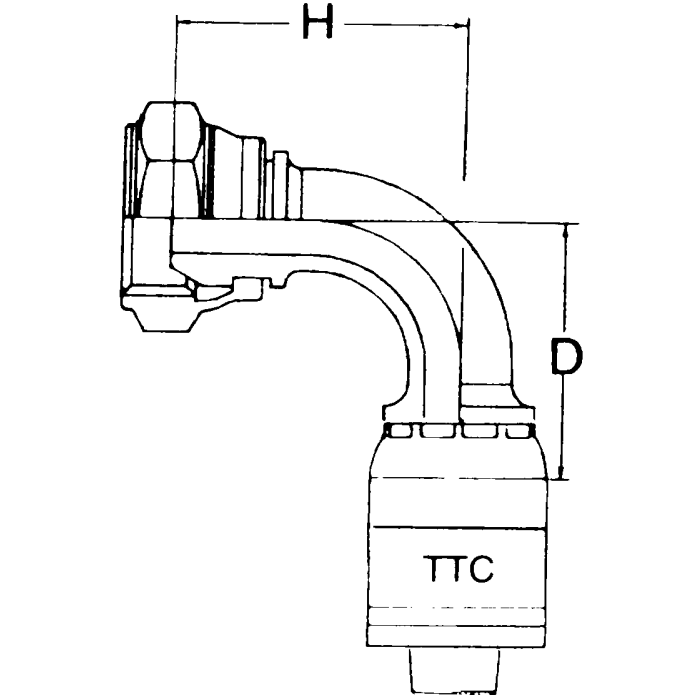

Model Number	Thread 1	Hose Size	D	H
1A10BFB10	G 5/8	-10	61.2	56.3 mm
1A12BFB12	G 3/4	-12	69.1	61.5 mm
1A16BFB16	G 1	-16	83.8	71.5 mm
1A4BFB4	G 1/4	-04	33	31 mm
1A6BFB6	G 3/8	-06	38.8	36.6 mm
1A8BFB6	G 1/2	-06	49.3	48.5 mm
1A8BFB8	G 1/2	-08	50.5	48.5 mm
