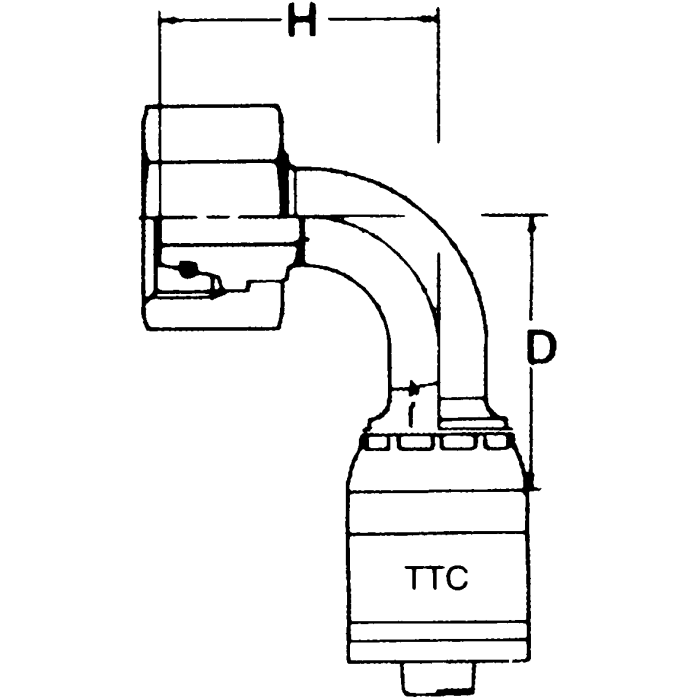

Global TTC 1 & 2 Wire Braid Steel Crimp Fittings, Female German DIN 3902 24 deg Flare Light Duty Swivel, 90 deg Elbow

Global TTC 1 & 2 Wire Braid Steel Crimp Fittings, Female German DIN 3902 24 deg Flare Light Duty Swivel, 90 deg Elbow

Products

Model Number	Thread 1	Tube O.D.	Hose Size	D	H
1A10DLB6	M18 x 1.5	12	-06	35	39 mm
1A12DLB8	M22 x 1.5	15	-08	42.3	43 mm
1A16DLB10	M26 x 1.5	18	-10	53.5	59 mm
1A20DLB12	M30 x 2	22	-12	64.8	54 mm
1A25DLB16	M36 x 2	28	-16	120	71 mm
1A5DLB4	M12 x 1.5	6	-04	26.5	26.5 mm
1A6DLB4	M14 x 1.5	8	-04	28.5	3.5 mm
1A8DLB6	M16 x 1.5	10	-06	32	35.5 mm
